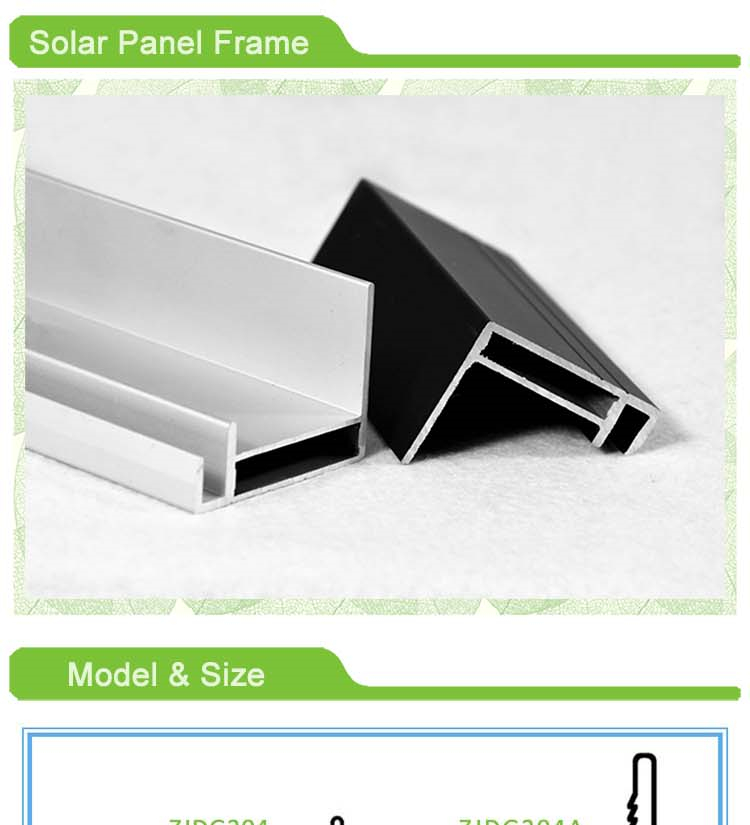

perfil de alumínio personalizado da extrusão para o quadro de painel solar do módulo
Descrição do produto
6063, 6005, 6005A, 6105, 6101, 6082, 6061
|Tempers||T4 , T5 , T6|
2750 Ton, 10" Press
Mill finish , Sand Blasting , Anodizing ,
Wood grain , Electrophoresis painting ,
* Powder coating thickness: 60-120um
* Anodizing thickness: 8-25um
*Engineering -CAD Shape Design
Standard Dies Shape
Angles(equal) , Angles(unequal) , C shapes , Caps , Carpet bar , Channels , Corners
According to GB5237.1-2008 or as per agreement
ISO9001: 2008 , ISO14001: 2004 , ISO10012 , AAA grade standardize corporate
Validation , Durability , Reliability , Mechanical , Chemical , Physical , Dimensional ,
|Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?|
A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability,
strength, corrosion resistance, formability and machinability -- which explains why it’s also
ZJD’s alloy of choice for all our aluminum extrusions.
|Q2: If I wish to send an electronic drawing to you, what types of files can you accept?|
A: We accept many file formats such as DXF, DWG and IGES.
Q3: Why do extrusion companies always ask me to sign off on a drawing before they can
order tooling if I’ve already provided a drawing?
A: Oftentimes, we find a few key dimensions that are missing from the original drawing
that need to be clearly identified. Other times, we have taken exception to a tolerance,
dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly
what we have agreed upon.
|Q4: What is the difference between anodized and mill finished?|
A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also
known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases
corrosion resistance and weather resistance.
|Q5: What About Anodizer Rack Marks?|
A: Electrical contact must be made to each part to be anodized. The more electrical
current required, the greater the electrical contact. The size of the contact therefore
depends on the anodizing process and the size of the part being anodized.
Q6: What is your closest sea-port ?
A: Dalian City SeaPort .
Grupo de Produto : Perfil de Alumínio Personalizado
